Convert FEN strings into visual representations, either in SVG or PNG

by androidexample

FEN to Image Library

Convert FEN (Forsyth–Edwards Notation) strings into visual representations, either in SVG (Scalable Vector Graphics) or PNG (Portable Network Graphics) formats.

Features

  • Convert FEN strings directly to SVG or PNG format.
  • Customizable board colors, orientation, and piece SVGs.
  • Provides default piece images, but allows for easy overrides with custom SVGs.
  • Efficient caching mechanism for SVG data retrieval.

Installation

You may follow the instructions in jitpack.io

Step 1: Add the JitPack repository to your build.gradle file Add it in your root build.gradle at the end of repositories:

allprojects {
    repositories {
        ...
        maven { url 'https://jitpack.io' }
    }
}

Step 2: Add the dependency to your project

dependencies {
    implementation 'com.github.nachogoro:fen2img:0.1.0-alpha'
}

Usage

1. Create the image generator object:

val fenConverter = Fen2Img()

The Config class can be used to customize the images, see section Customizing the board.

2. Convert FEN to SVG:

val svgString = fenConverter.Fen2Svg("[YOUR_FEN_STRING]")

3. Convert FEN to PNG: The following code converts a FEN string to a 400×400 pixels PNG image:

val pngString = fenConverter.Fen2Png("[YOUR_FEN_STRING]", 400)

Customizing the board

You can pass your own Config object to the constructor of Fen2Img, to customize your images.

Player Orientation

You can set the orientation of the board to be from either the white or black player’s perspective:

val config = Config(orientation = Player.BLACK)

Board Colors

Customize the colors of the chessboard’s light and dark squares:

val config = Config(lightSquareColor = "#FFFFFF", darkSquareColor = "#000000")

Custom SVGs for Pieces

Override the default SVGs for pieces by providing a map of piece characters to their custom SVG string representations:

val customSvgMap: Map<Char, String> = mapOf('K' to customKingSvg, 'Q' to customQueenSvg)
val config = Config(svgData = customSvgMap)

Examples

The following examples show different ways of displaying the board after: 1. e4..c5 2. Nf3

Default image (SVG)

val fenConverter = Fen2Img()
val svgData = fenConverter.Fen2Svg("rnbqkbnr/pp1ppppp/8/2p5/4P3/5N2/PPPP1PPP/RNBQKB1R b KQkq - 1 2 \n")

From black’s perspective (SVG)

val fenConverter = Fen2Img(Config(orientation=Player.BLACK))
val svgData = fenConverter.Fen2Svg("rnbqkbnr/pp1ppppp/8/2p5/4P3/5N2/PPPP1PPP/RNBQKB1R b KQkq - 1 2 \n")

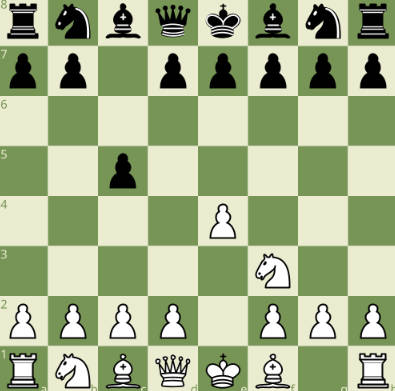

Using chess.com colorscheme (500×500 PNG)

val fenConverter = Fen2Img(Config(lightSquareColor = "#ebecd0", darkSquareColor = "#779556"))
val svgData = fenConverter.Fen2Png("rnbqkbnr/pp1ppppp/8/2p5/4P3/5N2/PPPP1PPP/RNBQKB1R b KQkq - 1 2 \n", 500)

Using chess.com colorscheme and the black pawns are ducks (SVG)

val duckData: String = """<?xml version="1.0" encoding="iso-8859-1"?>
    <!-- Uploaded to: SVG Repo, www.svgrepo.com, Generator: SVG Repo Mixer Tools -->
    <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">
    <svg fill="#000000" version="1.1" id="Capa_1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink"
	     width="800px" height="800px" viewBox="0 0 209.322 209.322"
	     xml:space="preserve">
    <g>
	    <path d="M105.572,101.811c9.889-6.368,27.417-16.464,28.106-42.166c0.536-20.278-9.971-49.506-49.155-50.878
		    C53.041,7.659,39.9,28.251,36.071,46.739l-0.928-0.126c-1.932,0-3.438,1.28-5.34,2.889c-2.084,1.784-4.683,3.979-7.792,4.308
		    c-3.573,0.361-8.111-1.206-11.698-2.449c-4.193-1.431-6.624-2.047-8.265-0.759c-1.503,1.163-2.178,3.262-2.028,6.226
		    c0.331,6.326,4.971,18.917,16.016,25.778c7.67,4.765,16.248,5.482,20.681,5.482c0.006,0,0.006,0,0.006,0
		    c2.37,0,4.945-0.239,7.388-0.726c2.741,4.218,5.228,7.476,6.037,9.752c2.054,5.851-27.848,25.087-27.848,55.01
		    c0,29.916,22.013,48.475,56.727,48.475h55.004c30.593,0,70.814-29.908,75.291-92.48C180.781,132.191,167.028,98.15,105.572,101.811
		    z M18.941,77.945C8.775,71.617,4.992,58.922,5.294,55.525c0.897,0.24,2.194,0.689,3.228,1.042
		    c4.105,1.415,9.416,3.228,14.068,2.707c4.799-0.499,8.253-3.437,10.778-5.574c0.607-0.509,1.393-1.176,1.872-1.491
    		c0.87,0.315,0.962,0.693,1.176,3.14c0.196,2.26,0.473,5.37,2.362,9.006c1.437,2.761,3.581,5.705,5.646,8.542
	    	c1.701,2.336,4.278,5.871,4.535,6.404c-0.445,1.184-4.907,3.282-12.229,3.282C30.177,82.591,23.69,80.904,18.941,77.945z
		     M56.86,49.368c0-4.938,4.001-8.943,8.931-8.943c4.941,0,8.942,4.005,8.942,8.943c0,4.931-4.001,8.942-8.942,8.942
		    C60.854,58.311,56.86,54.299,56.86,49.368z M149.159,155.398l-20.63,11.169l13.408,9.293c0,0-49.854,15.813-72.198-6.885
		    c-11.006-11.16-13.06-28.533,4.124-38.84c17.184-10.312,84.609,3.943,84.609,3.943L134.295,147.8L149.159,155.398z"/>
    </g>
    </svg>
    """

val fenConverter = Fen2Img(Config(
   lightSquareColor = "#ebecd0",
   darkSquareColor = "#779556",
    svgData=mapOf('p' to duckData)))
val svgData = fenConverter.Fen2Svg("rnbqkbnr/pp1ppppp/8/2p5/4P3/5N2/PPPP1PPP/RNBQKB1R b KQkq - 1 2 \n")

Contributing

Pull requests are welcome!
