SpanGridView
SpanGridView is an android view component which displays a grid and can plots points on the given coordinate.

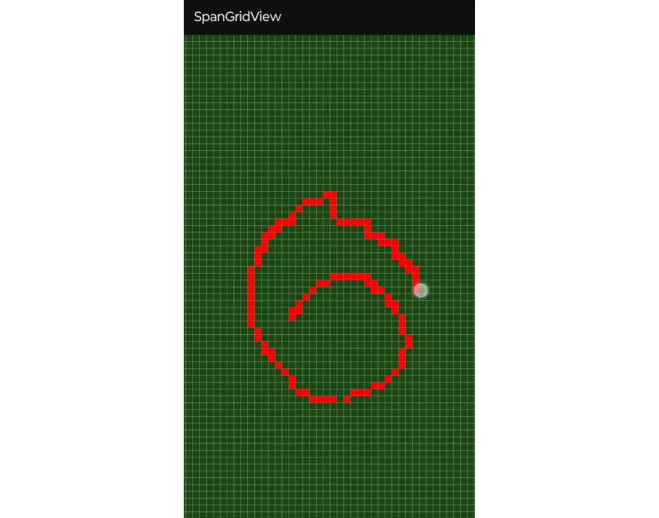

VN20230108_000846.mp4
Installation
Step 1. Add the JitPack repository to your build file
Add it in your root build.gradle at the end of repositories:
allprojects {
repositories {
...
maven { url 'https://jitpack.io' }
}
}
Step 2. Add the dependency
dependencies {
implementation 'com.github.akhilasdeveloper:SpanGridView:Tag'
}
Usage
Add it in the xml as below
<com.akhilasdeveloper.span_grid_view.SpanGridView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/gridViewHolder"
app:gridColor="#1B4913"
app:lineColor="#DFDFDF"
app:lineWidth="2"
app:scale=".5"
app:brushSize="1"
app:enableLine="true"
app:enableScale="true"
app:enableSpan="true" />
Attributes and functions
spanGridView.gridHeight //Returns Grid height of current screen
spanGridView.gridWidth //Returns Grid width of current screen
spanGridView.brushSize // set/get brush size [1, 2, 3].
spanGridView.drawEnabled // enable/disable drawing [true, false]
spanGridView.gridColor // set/get grid background color
spanGridView.lineColor // set/get grid line color
spanGridView.lineEnabled // enable/disable grid line [true, false]
spanGridView.scaleEnabled // enable/disable grid zooming/scaling
spanGridView.spanEnabled // enable/disable grid spanning
spanGridView.lineWidth // set grid line width
spanGridView.mode // get/set current mode [MODE_VIEW, MODE_DRAW]
//MODE_VIEW: spanning, pinch zooming of the grid view is allowed. spanning can be performed using one finger. Drawing will be disabled.
//MODE_DRAW: Drawing will be allowed. Spanning using 2 fingers is allowed. Pinch zooming is allowed.
spanGridView.pointsOnScreen //Returns the list of coordinates of the drawn points which are currently visible on the screen.
spanGridView.scale // set/get scale [0.0f to 1.0f] of the grid.
spanGridView.startPoint //Returns the coordinate of the top left point on the current screen
spanGridView.plotPoint(Point(2,3), Color.RED) //Draws a point on the grid position (2,3) with color red.
spanGridView.clearPoint(Point(3,5)) //Clear the drawn point on the grid position (3,5)
spanGridView.clearData() //Clear all drawn points
spanGridView.setGridSelectListener(eventListener = object: SpanGridView.OnGridSelectListener{
/**
* px is the touched grid cell
*/
override fun onDraw(px: Point) {
spanGridView.plotPoint(px, Color.RED) // plots a point on position px with color red.
}
/**
* Returns the current mode [MODE_VIEW, MODE_DRAW]
*/
override fun onModeChange(mode: Int) {
}
})
Contributing
Pull requests are welcome. For major changes, please open an issue first to discuss what you would like to change.
